903S-080BK-0A0-C1538

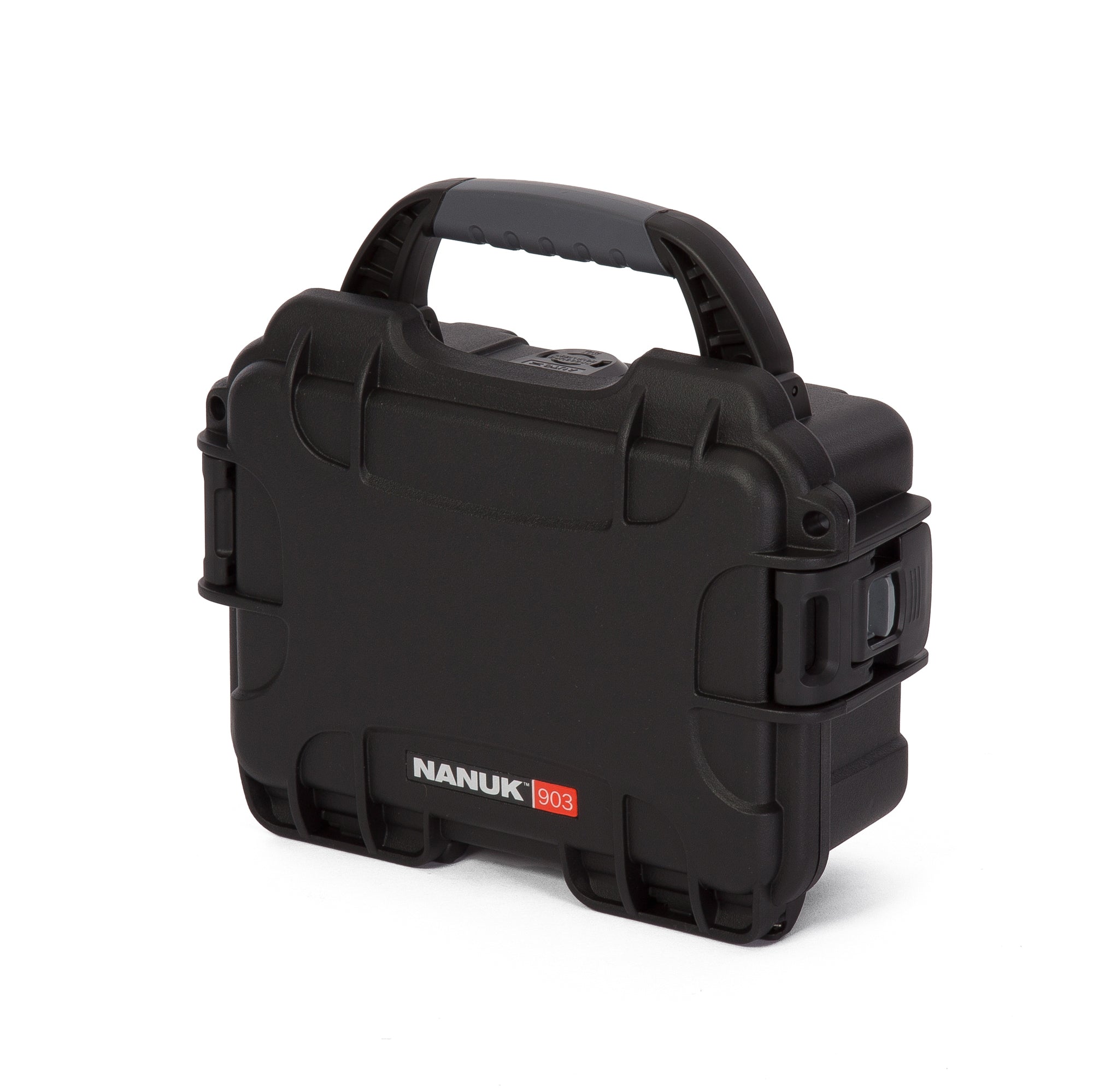

NANUK 903 Broadhead Holder - Black

5.0

$54.95 USD

Color: Black

In stock - Ships in 1-2 Working Days

30-Day Returns

Conditional Shipping

Limited Lifetime Warranty

Overview

The NANUK 903 is a compact, waterproof hard case perfect for organizing and protecting your most important smaller gear. Constructed from lightweight, tough resin, it features a double side-mounted PowerClaw latching system for superior security. With interior dimensions of 7.4" x 4.9" x 3.1", it offers ample space for small items. The ergonomic handle ensures comfortable transport, making it suitable for various professional applications.

Exterior Size (LxWxH)

9.1 in x 6.8 in x 3.8 in
231 mm x 173 mm x 97 mm

Interior Size (LxWxH)

7.4 in x 4.9 in x 3.1 in
188 mm x 124 mm x 79 mm

Volume

1.8 L

Download Spec Sheet

NANUK 903 Broadhead Holder

$54.95 USD

Description

NANUK 903 Broadhead Holder

Overview

Perfect for organizing, protecting and carrying your most important smaller gear, the NANUK 903 Brodhead Holder waterproof hard case is impenetrable and indestructible with a lightweight, tough resin shell and double side-mounted PowerClaw superior latching system.

NANUK 903 Black Broadhead Holder opened with Broadheads inside front view

Introducing the Nanuk 903 Brodhead Holder: Safeguard Your Gear with Confidence

Elevate your outdoor experience with the Nanuk 903 Brodhead Holder, the ultimate solution for protecting your valuable broadheads. Designed for hunters, archers, and outdoor enthusiasts alike, this custom-fit holder ensures secure storage and easy access to your gear.

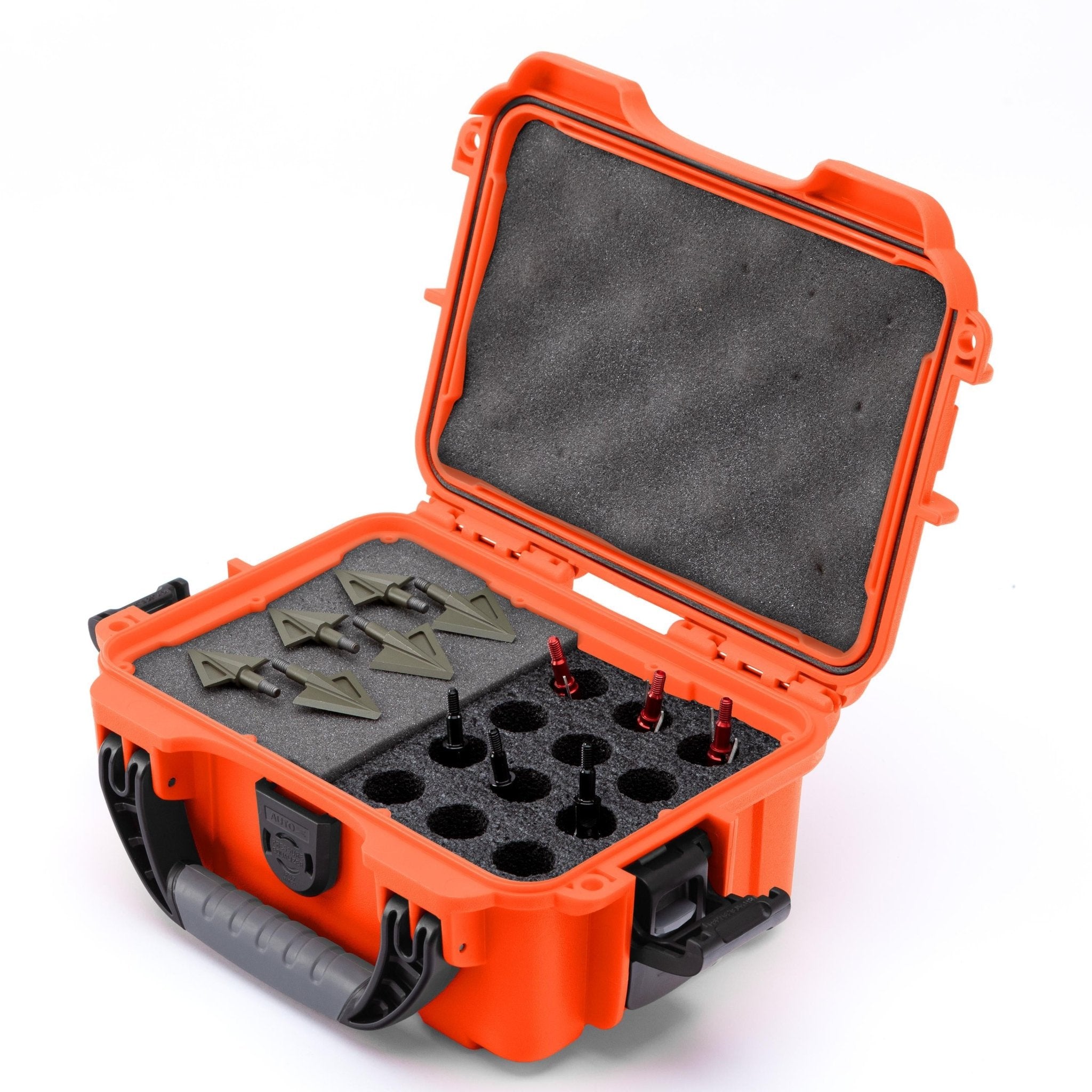

NANUK 903 Orange Broadhead Holder opened with Broadheads inside angleview

Say goodbye to tangled arrows and damaged fletchings – with the Nanuk 903 Brodhead Holder, your broadheads stay organized, safe, and ready for action. Take your adventures to the next level with peace of mind, knowing your gear is always protected with Nanuk.

NANUK 903 Broadhead Holder Powerclaw latches

This transport case is also equipped with an automatic pressure release valve and an integrated bezel system to accommodate custom panels without needing to drill holes, so the case stays watertight.

NANUK 903 Black Broadhead Holder opened with Broadheads inside top view

This MIL-Spec injection molded case is backed by a lifetime warranty.

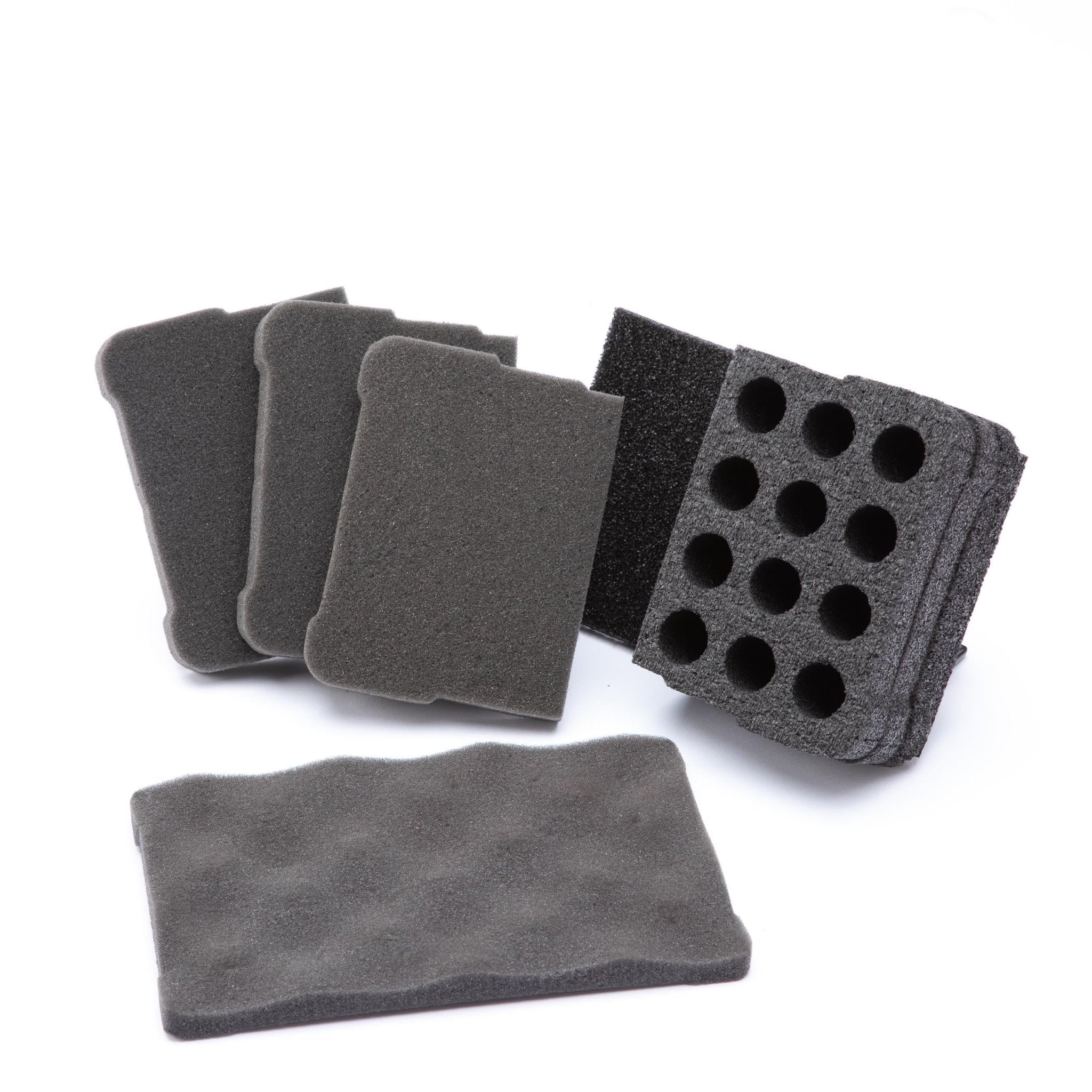

Inside, products can be secured with cubed foam, custom foam or the case can be purchased empty.

Specifications

NANUK 903 Broadhead Holder

Specifications

Exterior Size (LxWxH)

9.1 in x 6.8 in x 3.8 in
231 mm x 173 mm x 97 mm

Interior Size (LxWxH)

7.4 in x 4.9 in x 3.1 in
188 mm x 124 mm x 79 mm

Volume

1.8 L

Weight (Empty)

1.3 lb | 0.6 kg

Lid Depth

0.5 in | 13 mm

Base Depth

2.6 in | 66 mm

Temperature Range

Min -67°F (-55°C ) | Max 158°F (70°C)

Max Buoyancy

5.73 lb | 2.6 kg

Padlock Holes

0.25 in | 6.3 mm

Material

Lightweight NK-7 resin

Airline Carry On

Yes

Certifications

MIL-STD-810F Immersion

The MIL-STD-810F Immersion Test is a military standard procedure used to assess the ability of equipment, including hard cases, to withstand submersion in water, ensuring they remain operational and undamaged when exposed to wet environments.

Subjecting a hard case to the MIL-STD-810F Immersion Test is like verifying that its contents, such as sensitive instruments, continue to function flawlessly after being submerged in water during field operations.

ASTM D-4169 DC-18 Rainfall

ASTM D-4169 DC-18 Rainfall Test is a standardized procedure used to evaluate the ability of packaging, including hard cases, to protect its contents from moisture and rain during transportation, ensuring items remain dry and undamaged.

Subjecting a hard case to an ASTM D-4169 DC-18 Rainfall Test is akin to confirming that sensitive electronics inside remain unharmed even in a heavy downpour during shipment.

ASTM D-4169 DC-18 Vibration

ASTM D-4169 DC-18 Vibration Test is a standardized evaluation process used to assess the ability of packaging, such as hard cases, to withstand the vibrational forces encountered during transportation, ensuring the protection of contents.

Subjecting a hard case to an ASTM D-4169 DC-18 Vibration Test is akin to verifying that a camera inside remains undamaged despite enduring bumpy road conditions during shipment.

ASTM D-4169 DC-18 Drop Test

ASTM D-4169 DC-18 is a standardized testing procedure used to assess the durability of packaging, including hard cases, by subjecting them to controlled drops from specified heights and angles, simulating the stresses encountered during shipping and handling.

When a hard case undergoes an ASTM D-4169 DC-18 drop test, it's like verifying that a laptop inside remains unharmed after falling from a conveyor belt during airport luggage handling.

ATA Specification 300 - Category 1 Impact

ATA Specification 300 is a set of industry standards and guidelines for the design and testing of transport cases, particularly those used to safeguard delicate or sensitive equipment during transit. Within this specification, "Category 1 Impact" refers to a rigorous testing criterion. It signifies that a hard case, such as a protective container for fragile instruments, has been tested and certified to withstand a severe impact, typically a drop from a specified height, without compromising the integrity of its contents.

Consider a scenario where you're transporting a high-end camera in a hard case designed to meet ATA Specification 300 - Category 1 Impact standards. If, during your journey, the case accidentally falls from a height, the camera and its accessories will remain unharmed inside the case. This certification ensures that even in rough handling situations, your valuable equipment stays well-protected, making it a reliable choice for photographers and professionals who frequently travel with fragile gear.

IP6X Ingress Protection - Dustproof

IP6X represents an industry-standard rating that indicates a product's level of protection against the intrusion of dust and solid particles. The "IP" stands for "Ingress Protection," while the "6" specifically signifies the product's dustproof capability. An IP6X-rated device or enclosure has undergone testing and validation to ensure that it offers complete protection against the entry of fine dust particles, preventing them from harming the internal components.

Imagine you have a rugged hard case for your sensitive electronic equipment with an IP6X rating. In practical terms, this means that no matter how dusty the environment is, the case is engineered to keep out even the tiniest dust particles. So, whether you're on a desert expedition or working in a dusty construction site, your valuable electronics remain shielded from dust and potential damage, thanks to their IP6X Ingress Protection rating.

IPX7 Ingress Protection - Waterproof

IPX7 is an industry-standard rating that signifies a product's level of protection against water and moisture. The "IP" stands for "Ingress Protection," while the "X" is a placeholder for dust resistance (not applicable here). The "7" specifically denotes the product's waterproof capability. In IPX7-rated devices, the "X" indicates that there's no rating for dust intrusion, while the "7" means the device can be submerged in water up to 1 meter deep for 30 minutes without suffering damage.

Imagine you have a rugged hard case for your smartphone with an IPX7 rating. This means that if you accidentally drop your phone in a puddle or a shallow pool, the case is designed to keep your phone safe and dry even if it's submerged for up to half an hour. So, whether you're caught in a rainstorm or decide to take some underwater photos, your phone remains protected from water damage thanks to its IPX7 Ingress Protection rating.

Downloads

NANUK 903 Broadhead Holder

Downloads

903-2D-technical-drawings.pdf

903 ALUMINIUM BEZEL PLATE.pdf

903 LEXAN BEZEL PLATE.pdf

903 NANUK 2D Drawing.pdf

903 NANUK Cubed Foam.pdf

903 NANUK Custom Foam.pdf

903 NANUK INNER SURFS IGES.zip

903 LEXAN BEZEL PLATE DXF.zip

903 NANUK Cubed Foam DXF.zip

903 NANUK INNER SURFS Step.zip

903 NANUK 2D DXF.zip

903 NANUK INNER SURFS Parasolid.zip

903 NANUK Custom Foam dxf.zip

NANUK 903 Broadhead Holder

Overview

Introducing the Nanuk 903 Brodhead Holder: Safeguard Your Gear with Confidence

This transport case is also equipped with an automatic pressure release valve and an integrated bezel system to accommodate custom panels without needing to drill holes, so the case stays watertight.

This MIL-Spec injection molded case is backed by a lifetime warranty.

Inside, products can be secured with cubed foam, custom foam or the case can be purchased empty.
